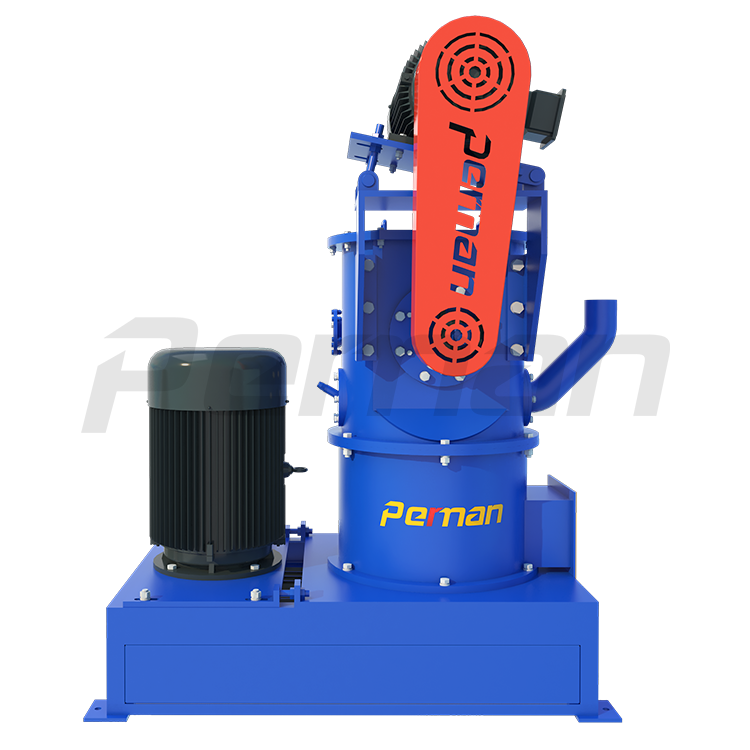

CAM-H ultrafine mechanical crusher
CAM-H series internal grading mill (horizontal grading) is a fine powder production equipment with ultra-fine grading function. The machine is mainly suitable for crushing Mohs 3.5 hardness below the crushing of materials, can obtain 5~150um ultrafine powder, large flow of cooling gas can be used for the crushing of heat-sensitive materials.
custom
150-9515-2877/400-858-01137*24 hours hotline
Guide installation
Chauffeur pick-up
After-sales service
Product Introduction
CAM-H series internal grading mill (horizontal grading) is a fine powder production equipment with ultra-fine grading function. The machine is mainly suitable for crushing Mohs 3.5 hardness below the crushing of materials, can obtain 5~150um ultrafine powder, large flow of cooling gas can be used for the crushing of heat-sensitive materials.
Set the mechanical impact ultrafine mill and turbine ultrafine classifier in one, the pulverized material is subjected to the action of air flow, and the turbine classifier forces the grading in the machine. The grading device replaces the screen of the usual grinder, and can simultaneously complete the two steps of micro-crushing and micro-powder separation. The crushing efficiency of Rotational speed is high. Adjust product granularity without downtime. When the system is pulverized, the powerful crushing airflow produces strong cooling function, and the temperature rise is low during pulverization. It is especially suitable for processing heat sensitive and fibrous materials, and the product particle size is uniform.
Product features
- 01Set the mechanical impact ultrafine mill and turbine ultrafine classifier with one, the pulverized material is affected by the air flow, forced classification by the turbine classifier in the machine, the classification device replaces the screen of the usual grinder, and can complete the two processes of micro-crushing and micro-powder separation at the same time, and the crushing efficiency is high.
- 02Adjust the particle size of the product without stopping by adjusting the Rotational speed of the graded impeller.
- 03When the system is pulverized, the strong crushing air flow produces a strong cooling function, and the temperature rise is low during pulverization. It is especially suitable for processing heat-sensitive and fibrous materials, and the product particle size is uniform.
Technical parameter
Parameter/Model | 280V/H | 340V/H | 410V/H | 510V/H | 710V/H | 760V/H | 900V/H | 1000V/H | 1100V/H | 1200V/H |
pulverizer | Grinding pan(mm) | 280 | 340 | 410 | 510 | 710 | 760 | 900 | 1000 | 1100 | 1200 |
power(KW) | 7.5 | 11 | 22 | 30 | 45 | 55 | 75 | 90 | 110 | 132 |
Rotational speed(r/min) | 7500 | 6215 | 4800 | 4200 | 3000 | 2800 | 2350 | 2100 | 1920 | 1760 |
grader | power(KW) | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 22 | 30 |
Maximum Rotational speed(r/min) | 4500 | 4000 | 3250 | 3000 | 2920 | 2500 | 2200 | 2000 | 1800 | 1600 |
fineness(um) | 10~200 | 10~200 | 10~200 | 12~250 | 12~250 | 12~250 | 15~300 | 15~300 | 15~300 | 15~300 |
The maximum Air volume can be processed(m/n) | 700 | 900 | 1600 | 3000 | 4500 | 5400 | 8000 | 10000 | 12000 | 14000 |
