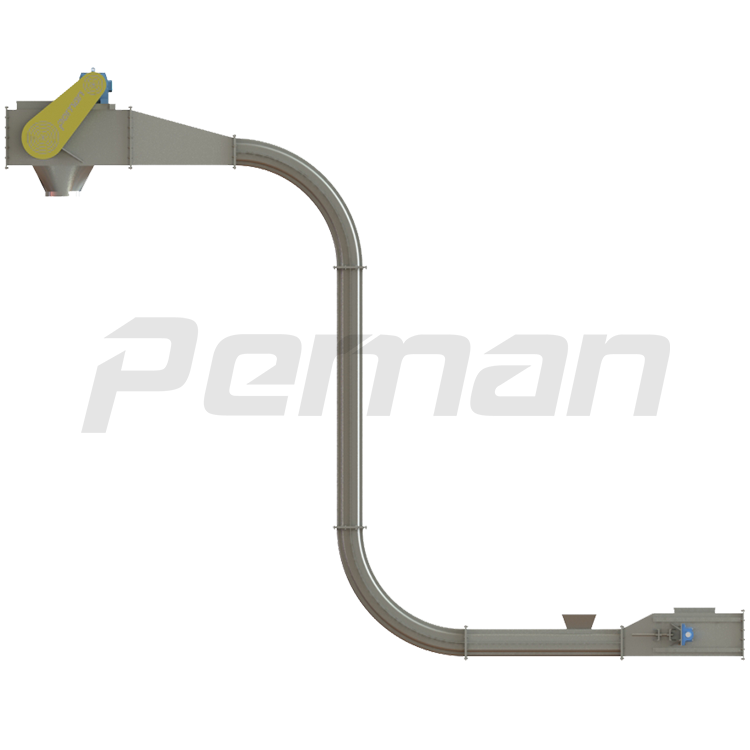

GBS double chain track ball type scraper conveyor
GBS double chain track ball type scraper conveyor

GBS double chain track ball type scraper conveyor

Combined with domestic and foreign cutting-edge technology, Perman's innovative double chain track ball scraper conveyor provides customers with excellent product experience with efficient transportation, convenient maintenance, security and significant energy saving and consumption reduction characteristics. Its unique structural design can flexibly realize any direction combination in the vertical plane of the fuselage, support multi-point controlled feeding and unloading, cleverly integrate the advantages of bucket elevator and scraper, is an innovative conveying equipment.

custom

150-9515-2877/400-858-01137*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

Combined with domestic and foreign cutting-edge technology, Perman's innovative double chain track ball scraper conveyor provides customers with excellent product experience with efficient transportation, convenient maintenance, security and significant energy saving and consumption reduction characteristics. Its unique structural design can flexibly realize any direction combination in the vertical plane of the fuselage, support multi-point controlled feeding and unloading, cleverly integrate the advantages of bucket elevator and scraper, is an innovative conveying equipment. This conveyor is specially designed to deal with the high viscosity, high moisture content, high fluidity and semi-abrasive materials produced by various types of centrifuges. It is widely used in the transportation of flammable, explosive, toxic, irritating odor and corrosive powder and granular materials, showing strong adaptability and wide application prospects.

Product features

  • 01The whole machine adopts the completely closed structure, the air tightness is good, and there is no ash leakage during the conveying process.
  • 02The running sound is small, no abnormal noise.
  • 03The shell adopts keel structure, compact structure and good rigidity.
  • 04The conveyor chain is double chain and uses rollers and rails to ensure the smooth operation and the rigidity of the chain.

attachment

  • untitled-(2)

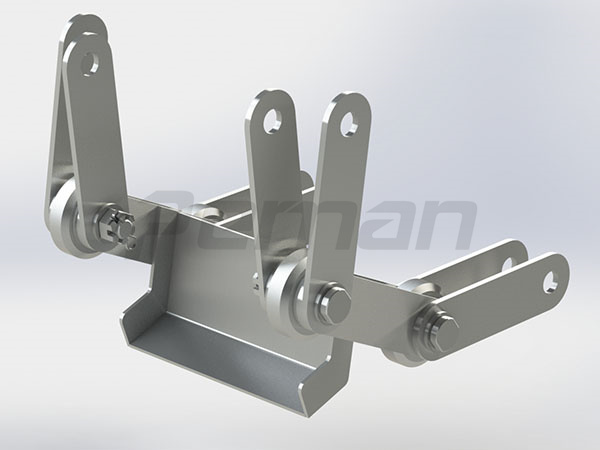

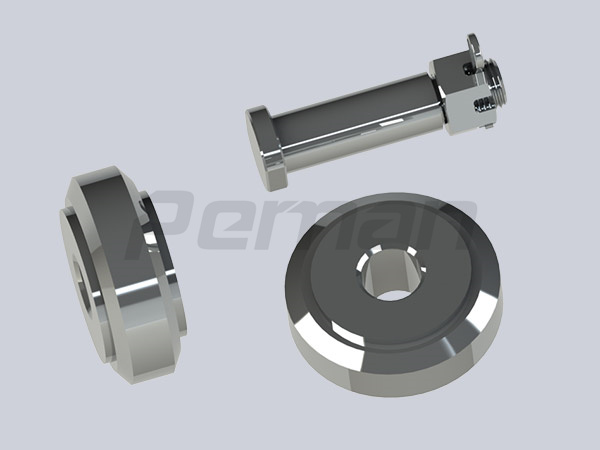

    Chain fitting

  • untitled5

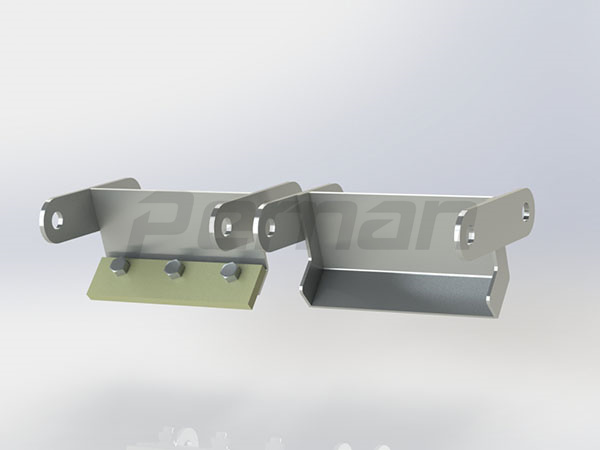

    Metal scraper and anti-friction scraper

  • untitled4

    Chain scraper combination

Technical parameter

Model

Delivery capacity(m3/h)

Overall dimensions of intermediate section (H * W)

Head dimensions (length * width * height)

Tail dimensions (L * W * H)

GBS150

3-7

330*350

750*660*1200

900*700*600

GBS300

13-20

320*390

900*660*1200

900*850*600

GBS500

35-45

450*710

1100*880*1500

1150*1050*900

GBS800

60-75

450*1010

1400*880*1500

1150*1350*900
