CBM-P pin rod grinding

CBM-P pin rod grinding

CBM-P pin rod crusher is our company in the digestion and absorption of foreign advanced powder technology on the basis of the development of suitable for low to medium hardness material grinding equipment, the performance indicators have reached the international standards of similar models.

custom

150-9515-2877/400-858-01137*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

      CBM-P pin rod crusher is our company in the digestion and absorption of foreign advanced powder technology on the basis of the development of suitable for low to medium hardness material grinding equipment, the performance indicators have reached the international standards of similar models. The design has 4 kinds of rotor structure, according to the different requirements of crushing can be selected respectively pin rod type, rotor type, grinding disc type, knocking rod type four kinds of rotor, pin rod is suitable for ultrafine crushing and crushing of viscous materials, rotor type is suitable for crushing brittle materials, fibrous materials, grinding disc type is suitable for plastic type crushing, knocking rod type is suitable for pre-crushing, coarse crushing.

Working principle

  The material is uniformly sent into the grinding chamber by the feeding system, subjected to the strong impact of the high-speed rotating grinding dynamic disk, while the static disk and the ring are subjected to friction, shear and other comprehensive forces, so that the material is crushed. According to the different properties of the material, the grinding dynamic disk and the static disk can be combined with different structural forms to meet the crushing needs of different materials.

The design has a variety of rotor structure, according to the different requirements of crushing can be selected respectively pin rod type, rotor type, grinding disc type, percussion rod type, D slice shear type and other rotors, pin rod is suitable for ultrafine crushing and crushing of viscous materials, rotor type is suitable for crushing brittle materials, fibrous materials, grinding disc type is suitable for plastic crushing, percussion rod type is suitable for pre-crushing, coarse crushing.

Product features

  • 01A variety of rotors can be universal, especially suitable for research institutes, enterprises and other users with a variety of crushing requirements.
  • 02Compact structure, small footprint, wide adaptability, high cost performance.
  • 03It is possible to optimize the crushing force by replacing different crushing devices and obtain high efficiency.
  • 04Simple operation, easy disassembly, easy cleaning.

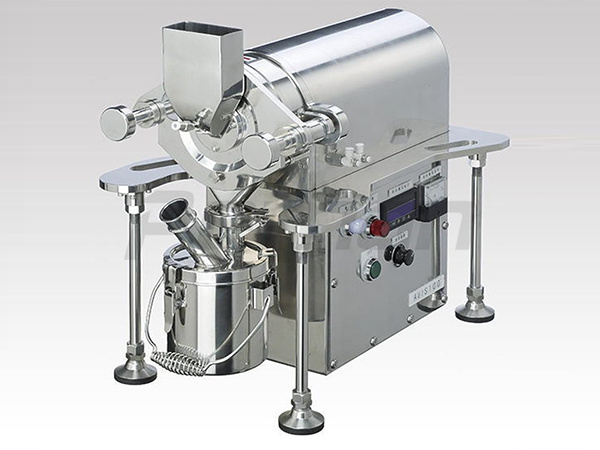

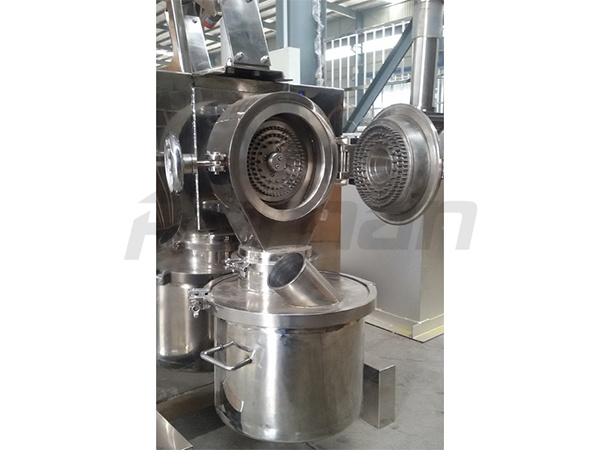

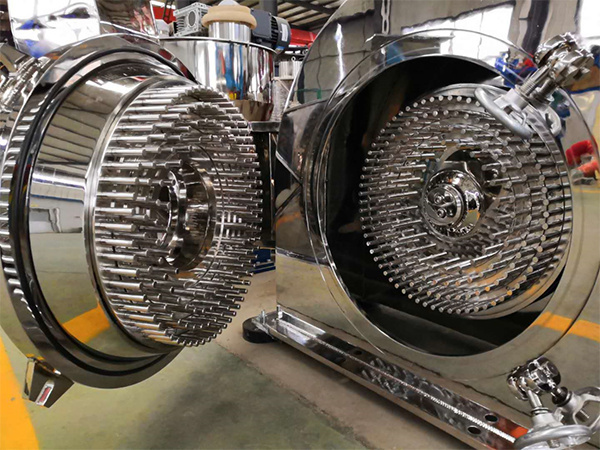

Product details

  • 3a8c5c69866974020c9b107b8b7b8eb
  • 277dd559cb5d8096dabdff815980125
  • 364cc3568884583ecf7e27ab22fe012

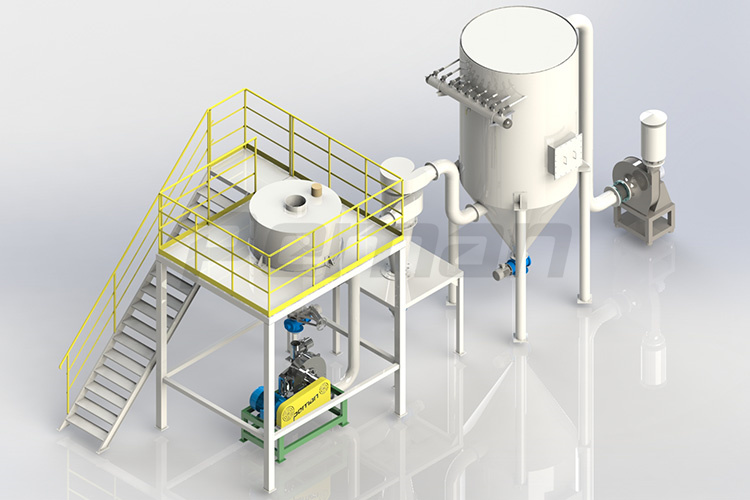

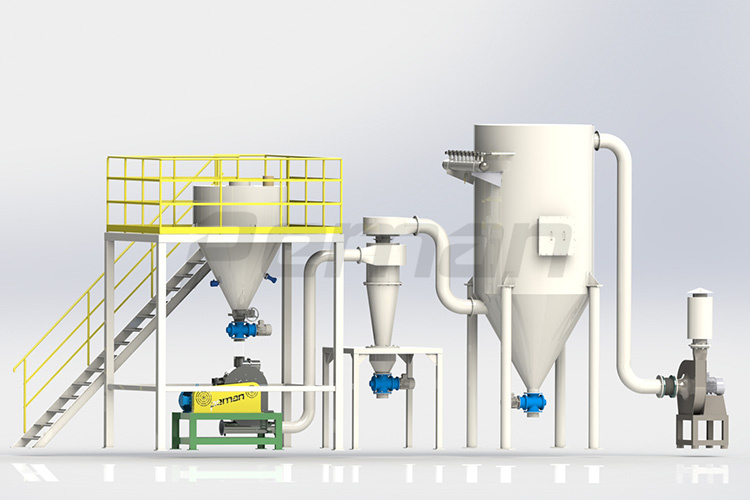

Process flow chart

cbm-p銷棒試打散機系統流程圖2

cbm-p銷棒試打散機系統流程圖3

Technical parameter

Disc diameter(mm)160260360520630800
Maximum Rotational speed(r/min)1200075005550385032002800
power(kw)47.515~223745~5555~75
Fineness of grinding20~32520~32520~32520~32520~32520~325
yield(kg/h)20~20035~100050~200075~3000100~5000200~10000
